Digital Chart System

catalogue

VLC-2400/P

VLC-2400/P provides various and precise opto-types

by using polarized and cutting-edge digital technology.

Random Function

VLC-2400/P provides various charts with differently

order opto-types with Number, Alphabetic letters,

Landolt, Shellen, Children opto-types in order to protect

the memorizing the order of opto-types by patients.

Slide function

In order to concentrate children’s patient, VLC-2400/P provides

slide animation functions. Also it shows number of ophthalmic symptoms

with prescriptions, when the chart is not used for period of time.

Adjusting viewing distance

Viewing distance can be adjustsed in accordance to the

space of the test room. Viewing distance is selectable by

0.25M step within 1.5M(Min) ~ 6M(Max)

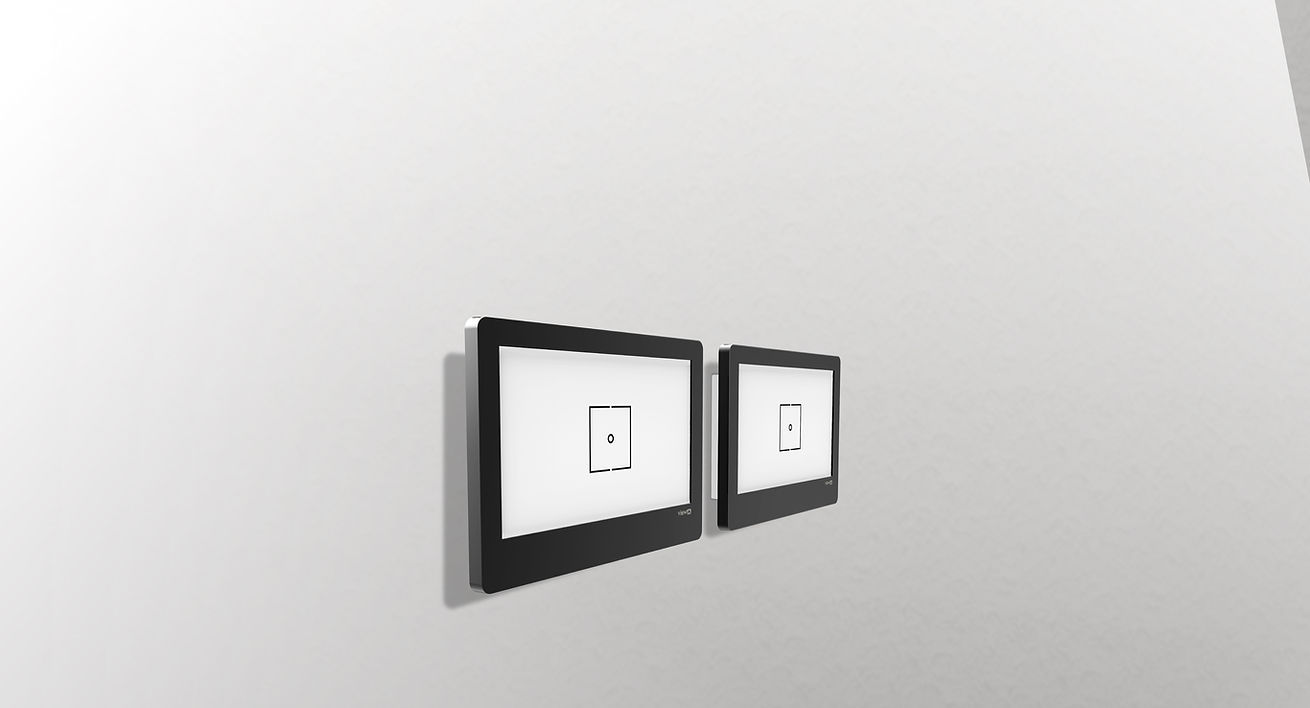

Sophisticated modern design

Sophisticated black silver bezel design can be placed in any test room.

VLC-2400

SPECIFICATION

LCD Type                          24inch(SXGA) TFT LCD



Resolution                        1920 X 1080 pixels



Chart window size           (H) 298.89 X (W)531.36 mm



Brightness                         MAX 250 cd/㎡

Chart Available                 Landolt, Snellen, English, Arabic, Numeral, Color Blindness, Special Chart, lmage and etc.



Selectable Distance           1.5 ~ 6M (0.25M step)



Memory Type                     IDE type Flash Disk Module 4G



Power Supply                     DC 12V / 5A



Power Consumption          Less than 60W



Dimension / Weight           (W) 624 X (H) 431 X (D) 79mm / 9kg



Remote Control                  (W) 69.5 X (H) 235.5 X (D) 26mm / 200g / Rechargeable Battery



Data Interface                     serial (RS-232)



Standard Accessory            Wall Mount Bracket



Optional Accessory             Poll type Floor Stand, Red / Green Glasses, Pola Glasses



Comctn



           Wireless                    IRDA Communication



            Wired                      RS232 Communication





ViewM Technology Co., Ltd.

4 F, 25, Heungan-daero, Gunpo-si, Gyeonggi-do, South Korea, 15809

TEL        +82 31 453 0202

E-Mail    sell@viewmtechnology.com
